Usage location:

Applicable for the open type sprinkler, fog, and foam system controller. In case of fire, the deluge valve can be started up by electronic magnetism valve, breakage of perceptive sprinkler or manually push the lever in the emit area to start up the deluge valve. It can cooperate with alarm valves and telecom signals to get a better understanding of the fire location.

Installation and maintenance guide:

1. Start up the device manually after installation. Turn on the water supply slowly. To prevent loss of pressure, make sure there is no air remaining in the pipe.

2. As the flow becomes steady, close the manual switch until the water is drained off.

3. By equipping the pressure gauge, it’s easier to check and maintain the device.

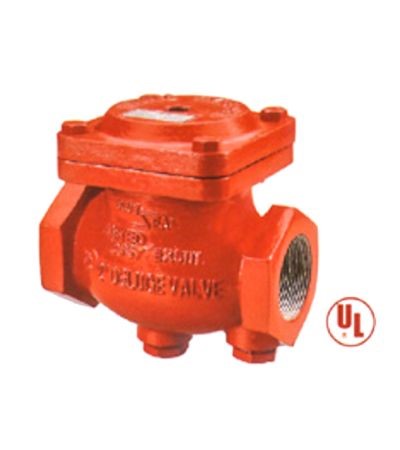

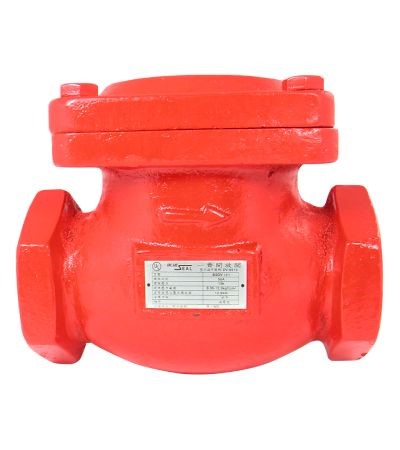

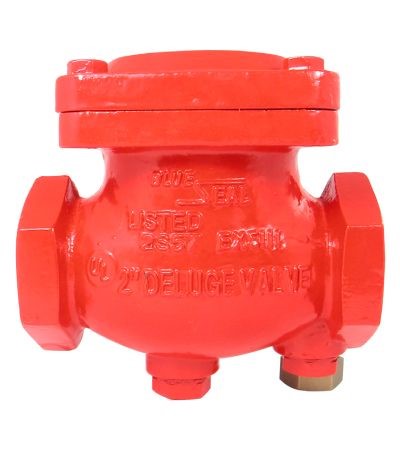

UL Deluge Valve
Connection Type	2" PT Threat
Usage	Horizontal
Max. Working Pressure	14 kgf/cm2
Testing Pressure	25 kgf/cm2
Working Pressure Range	1.5~14 kgf/cm2
Loss pressure tube length	14.9 m (48.9 ft)
Weight	8.5 kgs
